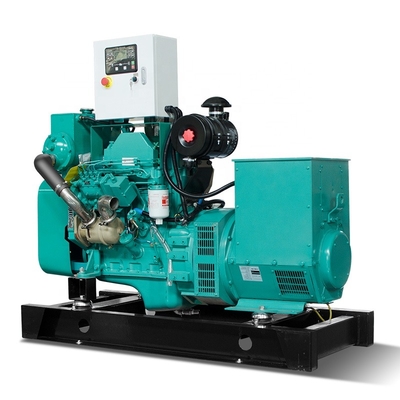

Powered by Cummins 4BT Marine Engine Genuine Diesel Marine Generator 40KW With CCS Certificate
| Genset Technical Data | |
| Genset Model |
CCFJ40J |
| Rated Voltage | 110-600V(Can be adjusted) |
| Rated Frequency | 50HZ |
| P.F(COS) | 0.8 |
| Prime Power | 40KW |
| Standby Power | 44KW |
|
Cummins Engine Data |
|
|
Engine Model |
4BTA3.9-GM47 |
|
Number of Cylinders |
4 cylinders in line |
|
Aspiration |
Turbocharged and after cooled |
|
Bore×Stroke |
102mm x120mm |
|
Displacement |
3.9L |
|
Prime Power/Speed |
47KW / 1500rpm |
|
Standby Power/Speed |
51.7KW / 1500rpm |
|
Speed Governor |
electrical |
|
Cooling System |
by heat exchanger |
|
Fuel Consumption at 100% Load |
213g/kw.h |
|
Alternator Data |
|
|
Optional brands |
Stamford/Leroy Somer/Marathon |
|
Prime power |
40KW |
|
Frequency/speed |
50Hz/1500rpm |
|
Exciter type |
Single bearing, Brushless, Self-excited with AVR |
|
Power factor |
0.8 |
|
Voltage adjust range |
≥5% |
|
Voltage regulation NL-FL |
≤±1% |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
| Control Panel | |
| Optional brands | ENDA/Deespea/Smartgen/ComAp |
Powered by Cummins 4BT Marine Engine Genuine Diesel Marine Generator 40KW With CCS Certificate
Powered by Cummins 4BT Marine Engine Genuine Diesel Marine Generator 40KW With CCS Certificate
Jiangsu WellPower Generator, Ltd which is one of the largest diesel generator set manufacturers in China mainland.
Our production capacity amounts to 9000 sets per year. We are specialized in making 10kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA... Our gensets mainly use DEEPSEA and SMARTGEN control panel.
According to your requests, they can be open type, silent type, mobile type and container type.
Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
------------------------------------OUR PARTNERS----------------------------------
-----------------------------------EXHIBITION SHOW-------------------------------
------------------------------------CERTIFICATE -------------------------------------
----------------------DELIVERY&PACKING INFORMATION-------------------
1.Q: What is your MOQ of this item?
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
