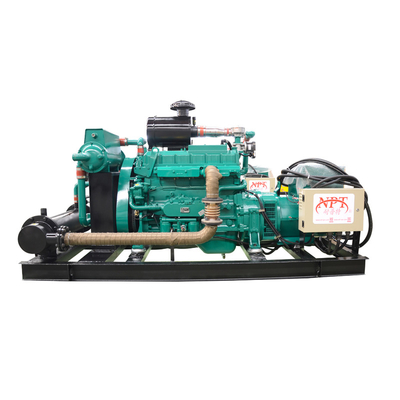

methane gas powered generator set from 10kw to 1000kw
|
Generating set general Model |
1000GFT |
|
|
Structure |
integral |
|
|
Exciting method |
AVR Brushless |
|
|
Rated Power (kW) |
1000 |
|
|
Rated Current(A) |
1800 |
|
|
Rated Voltage(V) |
400/230 |
|
|
Rated Frequency(Hz) |
50 |
|
|
Rated Power Factor |
0.8 LAG |
|
|
Compression Ratio |
14.5:1 |
|
|
No load voltage setting range |
95%-105% |
|
|
Steady state voltage regulation rate |
≤±1% |
|
|
Transient state voltage regulation rate |
≤-15%—+20% |
|
|
Voltage fluctuation rate |
≤3s |
|
|
Steady state frequency regulation rate |
≤±0.5% |
|
|
Transient state frequency regulation rate |
≤±10% |
|
|
Frequency stabilization time |
≤5s |
|
|
Line-voltage waveform sinusoidal distortion rate |
≤2.5% |
|
|
Gas Engine |
Model |
NPT80D120TL |
|
Type |
Vertical,Vee, 4-stroke, electric control ignition, pre-mixed lean burn, turbocharged after cooled |
|
|
Cylinder number |
V12 |
|
|
Bore x Stroke (mm) |
200x210 |
|
|
Total displacement (L) |
80 |
|
|
Rated Power (kW) |
1000 |
|
|
Rated Speed (r/min) |
1500 |
|
|
Speed Regulation Mode |
Electrical |
|
|
Starting Mode |
Electrical |
|
|
Fuel type |
Natural gas/biogas |
|
|
Overall dimension (L x W x H)(mm) |
3285x1644x2218 |
|
|
Net weight (kg) |
8380 |
|
Specification:
1.CE, ISO certificate 10kw to 1000kw.
2.over 20 years' design and research experience
3.high quality,fair price
4.safety,reliable service
Genset working condition:
Acceptable working conditions:
Ambient temperature : -10°C~+40°C (antifreeze or preheater needed for below 0°C)
Relative humidity:<90%(20°C)
Altitude:≤1000m
Normal working conditions:
Genset can run at rated power on the conditions:
Atmospheric Pressure: 100kPa, Ambient Temp: 20°C, Relative Humidity: 30%.
Applied gas:
Natural Gas, Biogas, LPG, Landfill gas, Oil field gas, Syngas, Coal bed gas etc
Acceptable fuel gas pressure: 5~50kPa
CH4 content: for natural gas≥85% CH4 content:for biogas≥55%
Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ). Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value<5500kcal/Nm3, it will decrease the power efficiency.
Gas doesn’t include free water or free materials (the size of impurities should be less than 5μm.)
H2S content≤20mg/Nm3
NH3 content≤20mg/Nm3
Impurities content≤30mg/Nm3;size≤5μm
Water content≤40g/Nm3, no free water.
Standard Scope of Supply:
1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc
2. Brand new brushless Stamford, Leroy Somer ,Marathon ,Meec Alte(Italy)alternator
3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H
4. Radiator for 40°C/50°C ambient temperature
5. Ignition system adopted USA Woodward
6. Emergency stop mounted
7. Battery,Battery cable and Battery charger
8. Standard tool box
9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )
10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)
Accessories list
1. Maintenance Operation manual
2. Quality certificate, Gen-sets ex-factory testing report
Optional:
1. Sound-proof canopy
2. CHP system
3. Grid parallel system
4. Remote radiator
5. Auto oil filling system
6. Water heater
7. Oil heater
8. Gas leaking detector
9. Flame detector
10. Gas scrubber
Different type of gas generator
Gas genset details
Cettificate
Packaging and shipping
Project site abroad
Customers visit for testing the gas genset
